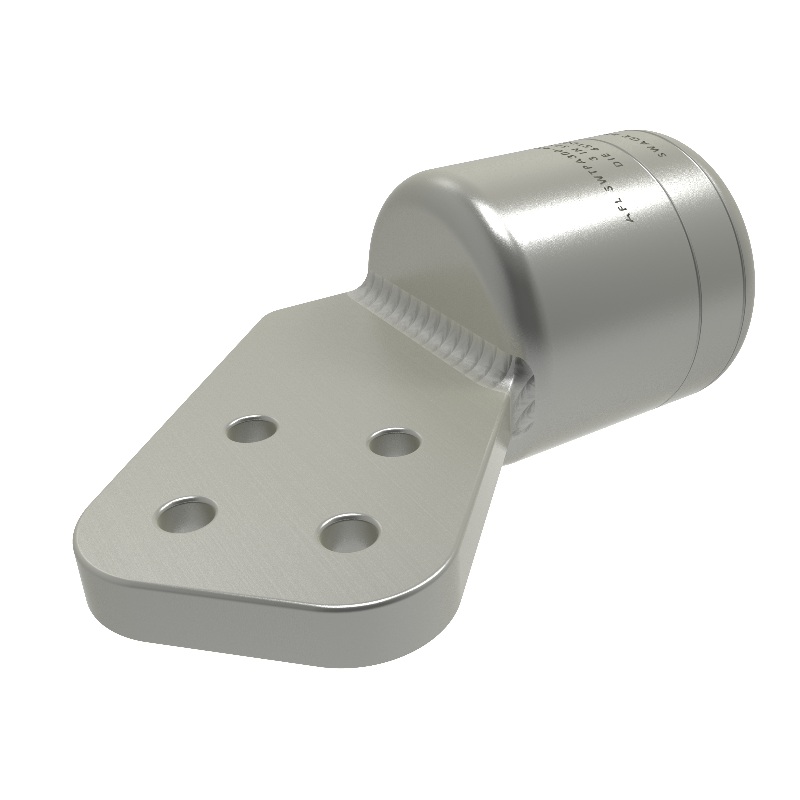

Swage Bus Terminals

Swage Aluminum Bus Terminals are designed to connect to a bus pipe and carry the full current of the bus pipe using Swage Technology. Terminal pads conform to NEMA standards. These accessories vary from 230-500 kV. SWTPC-AA, SWTP-AA, SWTPA-AA, SWTPA-90-AA, SWTPA-45R-AA

1bcc2ec2c7d1476d92fd17b2fc5258bc

66 Swage Bus Accessories www.AFLglobal.com or 800-890-8878 © 2013, AFL, all rights reserved. PP-3-00664, Revision 2, 11.21.19 Specifications are subject to change without notice. TERMINALS C L C L Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SWTPC-AA Swage Terminal with a NEMA Pad A Swage type bus terminal designed to terminate bus. A D D B Pad Detail 1 E Pad Detail 2 Pad Detail 3 C B B C D C 1.75 1.75 1.75 ∅ 0.56 ∅ 0.56 SYM. ∅ 0.56 1.75 1.75 —Machine Finish F continued 67 Swage Bus Accessories © 2013, AFL, all rights reserved. PP-3-00664, Revision 2, 11.21.19 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TERMINALS TYPE SWTPC-AA Swage Terminal with a NEMA Pad Ordering Information AFL NO. S.P.S. PAD DETAIL DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A B C D E F SWTPC100-2N-AA 1 1 7.20 2.00 1.00 0.63 0.38 4.50 65TD100 230 SWTPC100-4N-AA 1 2 7.20 3.00 0.63 0.63 0.38 4.50 65TD100 230 SWTPC100-4N4-AA 1 2 8.20 4.00 1.13 1.13 0.38 5.50 65TD100 230 SWTPC150-2N-AA 1.5 1 7.38 2.00 1.00 0.63 0.50 4.50 65TD150 230 SWTPC150-4N-AA 1.5 2 7.38 3.00 0.63 0.63 0.50 4.50 65TD150 230 SWTPC150-4N4-AA 1.5 2 8.38 4.00 1.13 1.13 0.50 5.50 65TD150 230 SWTPC200-2N-AA 2 1 7.88 2.00 1.00 0.63 0.50 4.50 65TD200 230 SWTPC200-4N-AA 2 2 7.88 3.00 0.63 0.63 0.50 4.50 65TD200 230 SWTPC200-4N4-AA 2 2 8.88 4.00 1.13 1.13 0.50 5.50 65TD200 230 SWTPC250-2N-AA 2.5 1 8.25 2.00 1.00 0.63 0.63 4.50 65TD250 230 SWTPC250-4N-AA 2.5 2 8.25 3.00 0.63 0.63 0.63 4.50 65TD250 230 SWTPC250-4N4-AA 2.5 2 9.25 4.00 1.13 1.13 0.63 5.50 65TD250 230 SWTPC300-2N-AA 3 1 9.00 2.00 1.00 0.63 0.75 4.50 65TD300 230 SWTPC300-4N-AA 3 2 9.00 3.00 0.63 0.63 0.75 4.50 65TD300 345 SWTPC300-4N4-AA 3 2 10.00 4.00 1.13 1.13 0.75 5.50 65TD300 345 SWTPC300-4N4-6-AA 3 2 10.50 4.00 1.13 1.13 0.75 6.00 65TD300 345 SWTPC300-5N4-AA 3 3 10.00 5.00 0.75 1.13 0.75 5.50 65TD300 345 SWTPC300-6N4-AA 3 3 10.00 6.00 1.25 1.13 0.75 5.50 65TD300 345 SWTPC350-2N-AA 3.5 1 9.12 2.00 1.00 0.63 0.75 4.50 65TD350 230 SWTPC350-4N-AA 3.5 2 9.12 3.00 0.63 0.63 0.75 4.50 65TD350 500 SWTPC350-4N4-AA 3.5 2 10.12 4.00 1.13 1.13 0.75 5.50 65TD350 500 SWTPC350-4N4-6-AA 3.5 2 10.62 4.00 1.13 1.13 0.75 6.00 65TD350 500 SWTPC350-5N4-AA 3.5 3 10.12 5.00 0.75 1.13 0.75 5.50 65TD350 500 SWTPC350-6N4-AA 3.5 3 10.12 6.00 1.25 1.13 0.75 5.50 65TD350 500 SWTPC400-2N-AA 4 1 9.38 2.00 1.00 0.63 0.75 4.50 65TD400 230 SWTPC400-4N-AA 4 2 9.38 3.00 0.63 0.63 0.75 4.50 65TD400 500 SWTPC400-4N4-AA 4 2 10.38 4.00 1.13 1.13 0.75 5.50 65TD400 500 SWTPC400-5N4-AA 4 3 10.38 5.00 0.75 1.13 0.75 5.50 65TD400 500 SWTPC400-6N4-AA 4 3 10.38 6.00 1.25 1.13 0.75 5.50 65TD400 500 SWTPC500-4N-AA 5 2 12.47 3.00 0.63 0.63 1.13 5.00 85TD500 500 SWTPC500-4N4-AA 5 2 12.47 4.00 1.13 1.13 1.13 5.00 85TD500 500 SWTPC500-4N4-6-AA 5 2 13.47 4.00 1.13 1.13 1.13 6.00 85TD500 500 SWTPC500-5N4-AA 5 3 12.47 5.00 0.75 1.13 1.13 5.00 85TD500 500 SWTPC500-6N4-AA 5 3 12.47 6.00 1.25 1.13 1.13 5.00 85TD500 500 SWTPC600-4N4-AA 6 2 13.23 4.00 1.13 1.13 1.13 5.00 115TD600 500 SWTPC600-5N4-AA 6 3 13.23 5.00 0.75 1.13 1.13 5.00 115TD600 500 SWTPC600-6N4-AA 6 3 13.23 6.00 1.25 1.13 1.13 5.00 115TD600 500 68 Swage Bus Accessories www.AFLglobal.com or 800-890-8878 © 2013, AFL, all rights reserved. PP-3-00661, Revision 2, 3.19.15 Specifications are subject to change without notice. TERMINALS C L C L Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SWTP-AA Swage Offset Bus Terminal A Swage type offset bus terminal. Pad Detail 1 A B SYM. Pad Detail 2 Pad Detail 3 F C D D C E 1.75 B 1.75 1.75 ∅ 0.56 ∅ 0.56 ∅ 0.56 C D B 1.75 1.75 —Machine Finish G continued 69 Swage Bus Accessories © 2013, AFL, all rights reserved. PP-3-00661, Revision 2, 3.19.15 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TERMINALS TYPE SWTP-AA Swage Offset Bus Terminal Ordering Information AFL NO. S.P.S. PAD DETAIL DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A B C D E F G SWTP100-2N-AA 1 1 7.00 2.00 1.00 0.63 0.38 1.13 4.30 65TD100 230 SWTP100-4N-AA 1 2 7.00 3.00 0.63 0.63 0.38 1.13 4.30 65TD100 230 SWTP100-4N4-AA 1 2 8.00 4.00 1.13 1.13 0.38 1.13 5.30 65TD100 230 SWTP100-5N4-AA 1 3 8.00 5.00 0.75 1.13 0.38 1.13 5.30 65TD100 230 SWTP100-6N4-AA 1 3 8.00 6.00 1.25 1.13 0.38 1.13 5.30 65TD100 230 SWTP150-2N-AA 1.5 1 7.01 2.00 1.00 0.63 0.50 1.50 4.13 65TD150 230 SWTP150-4N-AA 1.5 2 7.01 3.00 0.63 0.63 0.50 1.50 4.13 65TD150 230 SWTP150-4N4-AA 1.5 2 8.01 4.00 1.13 1.13 0.50 1.50 5.13 65TD150 230 SWTP150-5N4-AA 1.5 3 8.01 5.00 0.75 1.13 0.50 1.50 5.13 65TD150 230 SWTP150-6N4-AA 1.5 3 8.01 6.00 1.25 1.13 0.50 1.50 5.13 65TD150 230 SWTP200-2N-AA 2 1 7.23 2.00 1.00 0.63 0.50 1.75 3.85 65TD200 230 SWTP200-4N-AA 2 2 7.23 3.00 0.63 0.63 0.50 1.75 3.85 65TD200 230 SWTP200-4N4-AA 2 2 8.23 4.00 1.13 1.13 0.50 1.75 4.85 65TD200 230 SWTP200-5N4-AA 2 3 8.23 5.00 0.75 1.13 0.50 1.75 4.85 65TD200 230 SWTP200-6N4-AA 2 3 8.23 6.00 1.25 1.13 0.50 1.75 4.85 65TD200 230 SWTP250-2N-AA 2.5 1 7.50 2.00 1.00 0.63 0.62 2.00 3.75 65TD250 230 SWTP250-4N-AA 2.5 2 7.50 3.00 0.63 0.63 0.62 2.00 3.75 65TD250 230 SWTP250-4N4-AA 2.5 2 8.50 4.00 1.13 1.13 0.62 2.00 4.75 65TD250 230 SWTP250-5N4-AA 2.5 3 8.50 5.00 0.75 1.13 0.62 2.00 4.75 65TD250 230 SWTP250-6N4-AA 2.5 3 8.50 6.00 1.25 1.13 0.62 2.00 4.75 65TD250 230 SWTP300-2N-AA 3 1 8.40 2.00 1.00 0.63 0.75 2.38 3.90 65TD300 230 SWTP300-4N-AA 3 2 8.40 3.00 0.63 0.63 0.75 2.38 3.90 65TD300 345 SWTP300-4N4-AA 3 2 9.40 4.00 1.13 1.13 0.75 2.38 4.90 65TD300 345 SWTP300-5N4-AA 3 3 9.40 5.00 0.75 1.13 0.75 2.38 4.90 65TD300 345 SWTP300-6N4-AA 3 3 9.40 6.00 1.25 1.13 0.75 2.38 4.90 65TD300 345 SWTP350-2N-AA 3.5 1 8.13 2.00 1.00 0.63 0.75 2.62 3.50 65TD350 230 SWTP350-4N-AA 3.5 2 8.13 3.00 0.63 0.63 0.75 2.62 3.50 65TD350 345 SWTP350-4N4-AA 3.5 2 9.13 4.00 1.13 1.13 0.75 2.62 4.50 65TD350 345 SWTP350-5N4-AA 3.5 3 9.13 5.00 0.75 1.13 0.75 2.62 4.50 65TD350 345 SWTP350-6N4-AA 3.5 3 9.13 6.00 1.25 1.13 0.75 2.62 4.50 65TD350 345 SWTP400-2N-AA 4 1 8.51 2.00 1.00 0.63 0.75 2.88 3.63 65TD400 230 SWTP400-4N-AA 4 2 8.51 3.00 0.63 0.63 0.75 2.88 3.63 65TD400 345 SWTP400-4N4-AA 4 2 9.51 4.00 1.13 1.13 0.75 2.88 4.63 65TD400 345 SWTP400-4N4-T1-AA 4 2 9.51 4.00 1.13 1.13 1.00 2.88 4.63 65TD400 345 SWTP400-5N4-AA 4 3 9.51 5.00 0.75 1.13 0.75 2.88 4.63 65TD400 345 SWTP400-6N4-AA 4 3 9.51 6.00 1.25 1.13 0.75 2.88 4.63 65TD400 345 SWTP500-4N4-AA 5 2 11.97 4.00 1.13 1.13 1.13 3.50 4.25 85TD500 500 SWTP500-5N4-AA 5 3 11.97 5.00 0.75 1.13 1.13 3.50 4.25 85TD500 500 SWTP500-6N4-AA 5 3 11.97 6.00 1.25 1.13 1.13 3.50 4.25 85TD500 500 SWTP600-4N4-AA 6 2 13.23 4.00 1.13 1.13 1.13 4.25 4.25 115TD600 500 SWTP600-5N4-AA 6 3 13.23 5.00 0.75 1.13 1.13 4.25 4.25 115TD600 500 SWTP600-6N4-AA 6 3 13.23 6.00 1.25 1.13 1.13 4.25 4.25 115TD600 500 70 Swage Bus Accessories www.AFLglobal.com or 800-890-8878 © 2013, AFL, all rights reserved. PP-3-00654, Revision 1, 3.10.15 Specifications are subject to change without notice. TERMINALS Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SWTPA-AA Swage Bus Terminal with Angled NEMA Pad A Swage type bus terminal with angled NEMA pad. C L C L C ° F continued —Machine Finish C L C L E Pad Detail 3 D A 1.75 1.75 ∅ 0.56 1.75 B C L C L E Pad Detail 1 D A 1.75 ∅ 0.56 C L E Pad Detail 2 D A 1.75 1.75 ∅ 0.56 Ordering Information AFL NO. S.P.S. PAD DETAIL DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A B C D E F SWTPA100-2N-45-AA 1 1 2.00 7.68 45 1.00 0.63 0.38 65TD100 230 SWTPA100-4N-30-AA 1 2 3.00 8.40 30 0.63 0.63 0.38 65TD100 230 SWTPA100-4N-45-AA 1 2 3.00 7.68 45 0.63 0.63 0.38 65TD100 230 SWTPA100-4N-60-AA 1 2 3.00 6.75 60 0.63 1.13 0.38 65TD100 230 SWTPA100-4N4-30-AA 1 2 4.00 8.40 30 1.13 1.13 0.38 65TD100 230 SWTPA100-4N4-45-AA 1 2 4.00 7.68 45 1.13 1.13 0.38 65TD100 230 SWTPA100-4N4-60-AA 1 2 4.00 6.75 60 1.13 1.13 0.38 65TD100 230 SWTPA150-2N-45-AA 1.5 1 2.00 9.39 45 1.00 0.63 0.50 65TD150 230 SWTPA150-4N-30-AA 1.5 2 3.00 10.26 30 0.63 0.63 0.50 65TD150 230 SWTPA150-4N-45-AA 1.5 2 3.00 9.39 45 0.63 0.63 0.50 65TD150 230 SWTPA150-4N-60-AA 1.5 2 3.00 8.25 60 0.63 0.63 0.50 65TD150 230 SWTPA150-4N4-30-AA 1.5 2 4.00 10.26 30 1.13 1.13 0.50 65TD150 230 SWTPA150-4N4-45-AA 1.5 2 4.00 9.39 45 1.13 1.13 0.50 65TD150 230 SWTPA150-4N4-60-AA 1.5 2 4.00 8.25 60 1.13 1.13 0.50 65TD150 230 71 Swage Bus Accessories © 2013, AFL, all rights reserved. PP-3-00654, Revision 1, 3.10.15 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TERMINALS TYPE SWTPA-AA Swage Bus Terminal with Angled NEMA Pad Ordering Information AFL NO. S.P.S. PAD DETAIL DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A B C D E F SWTPA200-2N-30-AA 2 1 2.00 10.26 30 1.00 0.63 0.50 65TD200 230 SWTPA200-2N-45-AA 2 1 2.00 9.39 45 1.00 0.63 0.50 65TD200 230 SWTPA200-4N-30-AA 2 2 3.00 10.26 30 0.63 0.63 0.50 65TD200 230 SWTPA200-4N-45-AA 2 2 3.00 9.39 45 0.63 0.63 0.50 65TD200 230 SWTPA200-4N-60-AA 2 2 3.00 8.25 60 0.63 0.63 0.50 65TD200 230 SWTPA200-4N4-30-AA 2 2 4.00 10.26 30 1.13 1.13 0.50 65TD200 230 SWTPA200-4N4-45-AA 2 2 4.00 9.39 45 1.13 1.13 0.50 65TD200 230 SWTPA200-4N4-60-AA 2 2 4.00 8.25 60 1.13 1.13 0.50 65TD200 230 SWTPA250-2N-30-AA 2.5 1 2.00 10.26 30 1.00 0.63 0.63 65TD250 230 SWTPA250-2N-45-AA 2.5 1 2.00 9.39 45 1.00 0.63 0.63 65TD250 230 SWTPA250-4N-30-AA 2.5 2 3.00 9.76 30 0.63 0.63 0.63 65TD250 230 SWTPA250-4N-45-AA 2.5 2 3.00 9.39 45 0.63 0.63 0.63 65TD250 230 SWTPA250-4N-60-AA 2.5 2 3.00 9.25 60 0.63 0.63 0.63 65TD250 230 SWTPA250-4N4-30-AA 2.5 2 4.00 10.26 30 1.13 1.13 0.63 65TD250 230 SWTPA250-4N4-45-AA 2.5 2 4.00 9.39 45 1.13 1.13 0.63 65TD250 230 SWTPA250-4N4-60-AA 2.5 2 4.00 8.25 60 1.13 1.13 0.63 65TD250 230 SWTPA300-2N-30-AA 3 1 2.00 12.13 30 1.00 0.63 0.75 65TD300 345 SWTPA300-2N-45-AA 3 1 2.00 11.10 45 1.00 0.63 0.75 65TD300 345 SWTPA300-4N-30-AA 3 2 3.00 12.13 30 0.63 0.63 0.75 65TD300 345 SWTPA300-4N-45-AA 3 2 3.00 11.10 45 0.63 0.63 0.75 65TD300 345 SWTPA300-4N-60-AA 3 2 3.00 9.75 60 0.63 0.63 0.75 65TD300 345 SWTPA300-4N4-30-AA 3 2 4.00 12.13 30 1.13 1.13 0.75 65TD300 345 SWTPA300-4N4-45-AA 3 2 4.00 11.10 45 1.13 1.13 0.75 65TD300 345 SWTPA300-4N4-60-AA 3 2 4.00 9.75 60 1.13 1.13 0.75 65TD300 345 SWTPA350-2N-30-AA 3.5 1 2.00 12.13 30 1.00 0.63 0.75 65TD350 500 SWTPA350-2N-45-AA 3.5 1 2.00 11.10 45 1.00 0.63 0.75 65TD350 500 SWTPA350-4N-30-AA 3.5 2 3.00 12.13 30 0.63 0.63 0.75 65TD350 500 SWTPA350-4N-45-AA 3.5 2 3.00 11.10 45 0.63 0.63 0.75 65TD350 500 SWTPA350-4N-60-AA 3.5 2 3.00 9.75 60 0.63 0.63 0.75 65TD350 500 SWTPA350-4N4-30-AA 3.5 2 4.00 12.13 30 1.13 1.13 0.75 65TD350 500 SWTPA350-4N4-45-AA 3.5 2 4.00 11.10 45 1.13 1.13 0.75 65TD350 500 SWTPA350-4N4-60-AA 3.5 2 4.00 9.75 60 1.13 1.13 0.75 65TD350 500 SWTPA400-2N-30-AA 4 1 2.00 12.13 30 1.00 0.63 0.75 65TD400 500 SWTPA400-2N-45-AA 4 1 2.00 11.10 45 1.00 0.63 0.75 65TD400 500 SWTPA400-4N-30-AA 4 2 3.00 12.13 30 0.63 0.63 0.75 65TD400 500 SWTPA400-4N-45-AA 4 2 3.00 11.10 45 0.63 0.63 0.75 65TD400 500 SWTPA400-4N-60-AA 4 2 3.00 9.75 60 0.63 0.63 0.75 65TD400 500 SWTPA400-4N4-30-AA 4 2 4.00 12.13 30 1.13 1.13 0.75 65TD400 500 SWTPA400-4N4-45-AA 4 2 4.00 11.10 45 1.13 1.13 0.75 65TD400 500 SWTPA400-4N4-60-AA 4 2 4.00 9.75 60 1.13 1.13 0.75 65TD400 500 SWTPA500-4N4-30-AA 5 2 4.00 13.47 30 1.13 1.13 1.00 85TD500 500 SWTPA500-4N4-45-AA 5 2 4.00 12.57 45 1.13 1.13 1.00 85TD500 500 SWTPA500-4N4-60-AA 5 2 4.00 11.28 60 1.13 1.13 1.00 85TD500 500 SWTPA500-5N4-30-AA 5 3 5.00 13.47 30 0.75 1.13 1.00 85TD500 500 SWTPA500-5N4-45-AA 5 3 5.00 12.57 45 0.75 1.13 1.00 85TD500 500 SWTPA500-5N4-60-AA 5 3 5.00 11.28 60 0.75 1.13 1.00 85TD500 500 SWTPA500-6N4-30-AA 5 3 6.00 13.47 30 1.25 1.13 1.00 85TD500 500 SWTPA500-6N4-45-AA 5 3 6.00 12.57 45 1.25 1.13 1.00 85TD500 500 SWTPA500-6N4-60-AA 5 3 6.00 11.28 60 1.25 1.13 1.00 85TD500 500 SWTPA600-4N4-30-AA 6 2 4.00 16.35 30 1.13 1.13 1.00 115TD600 500 SWTPA600-4N4-45-AA 6 2 4.00 15.44 45 1.13 1.13 1.00 115TD600 500 SWTPA600-4N4-60-AA 6 2 4.00 14.15 60 1.13 1.13 1.00 115TD600 500 SWTPA600-5N4-30-AA 6 3 5.00 16.35 30 0.75 1.13 1.00 115TD600 500 SWTPA600-5N4-45-AA 6 3 5.00 15.44 45 0.75 1.13 1.00 115TD600 500 SWTPA600-5N4-60-AA 6 3 5.00 14.15 60 0.75 1.13 1.00 115TD600 500 SWTPA600-6N4-30-AA 6 3 6.00 16.35 30 1.25 1.13 1.00 115TD600 500 SWTPA600-6N4-45-AA 6 3 6.00 15.44 45 1.25 1.13 1.00 115TD600 500 SWTPA600-6N4-60-AA 6 3 6.00 14.15 60 1.25 1.13 1.00 115TD600 500 © 2013, AFL, all rights reserved. PP-3-00662, Revision 2, 3.27.2023 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 72 SWAGE360 ® Bus Accessories SWAGE360 ® Bus Accessories SWAGE HERE AFL SWTPA250-4N4-90-AA 2.50 IN SPS DIE 65TD250 C L C L Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SWTPA-90-AA Swage Vertical Bus Terminal A Swage type bus vertical terminal. C G A —Machine Finish SWAGE HERE AFL SWTPA250-4N4-90-AA 2.50 IN SPS DIE 65TD250 C L E D Pad Detail 2 F 1.75 1.75 ∅ 0.56 B H continued C L Pad Detail 1 Fig. 1 Fig. 2 SWAGE HERE AFL SWTPA250-4N4-90-AA 2.50 IN SPS DIE 65TD250 C L C L SWAGE HERE AFL SWTPA250-4N4-90-AA 2.50 IN SPS DIE 65TD250 C L Fig. 3 Pad Detail 3 ∅ 0.56 E D F 1.75 ∅ 0.56 B E 1.75 B D F 1.75 73 SWAGE360 ® Bus Accessories © 2013, AFL, all rights reserved. PP-3-00662, Revision 2, 3.27.2023 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 SWAGE360 ® Bus Accessories TYPE SWTPA-90-AA Swage Vertical Bus Terminal Ordering Information AFL NO. S.P.S. FIG. NO. PAD DETAIL DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A B C D E F G H SWTPA100-2N-90-AA 1 1 1 3.88 3.00 6.50 2.00 0.63 1.00 0.38 5.13 65TD100 230 SWTPA100-4N-90-AA 1 1 2 3.88 3.00 6.50 3.00 0.63 0.63 0.38 5.13 65TD100 230 SWTPA100-4N4-90-AA 1 1 2 3.88 4.00 8.50 4.00 1.13 1.13 0.38 7.13 65TD100 230 SWTPA125-2N-90-AA 1.25 2 1 3.50 3.00 8.50 2.00 0.63 1.00 0.50 6.88 65TD150 230 SWTPA150-2N-90-AA 1.5 2 1 4.00 3.00 7.00 2.00 0.63 1.00 0.50 5.38 65TD150 230 SWTPA150-4N-90-AA 1.5 1 2 4.00 3.00 7.00 3.00 0.63 0.63 0.50 5.38 65TD150 230 SWTPA150-4N4-90-AA 1.5 1 2 4.00 4.00 8.50 4.00 1.13 1.13 0.50 6.88 65TD150 230 SWTPA200-2N-90-AA 2 2 1 4.00 3.00 7.50 2.00 0.63 1.00 0.50 5.63 65TD200 230 SWTPA200-4N-90-AA 2 1 2 4.00 3.00 7.50 3.00 0.63 0.63 0.50 5.63 65TD200 230 SWTPA200-4N4-90-AA 2 1 2 4.00 4.00 8.50 4.00 1.13 1.13 0.50 6.63 65TD200 230 SWTPA250-2N-90-AA 2.5 1 1 4.13 3.00 8.00 2.00 0.63 1.00 0.63 5.75 65TD250 230 SWTPA250-4N-90-AA 2.5 2 2 4.13 3.00 8.00 3.00 0.63 0.63 0.63 5.75 65TD250 230 SWTPA250-4N4-90-AA 2.5 1 2 4.13 4.00 9.00 4.00 1.13 1.13 0.63 6.75 65TD250 230 SWTPA250-5N4-90-AA 2.5 1 3 4.13 4.00 9.50 5.00 1.13 0.75 0.63 7.25 65TD250 230 SWTPA250-6N4-90-AA 2.5 1 3 4.13 4.00 10.50 6.00 1.13 1.25 0.63 8.25 65TD250 230 SWTPA300-2N-90-AA 3 1 1 4.25 3.00 9.00 2.00 0.63 1.00 0.75 6.43 65TD300 230 SWTPA300-4N-90-AA 3 2 2 4.25 3.00 9.00 3.00 0.63 0.63 0.75 6.43 65TD300 230 SWTPA300-4N4-90-AA 3 1 2 4.25 4.00 10.00 4.00 1.13 1.13 0.75 7.43 65TD300 230 SWTPA300-5N4-90-AA 3 1 3 4.25 4.00 10.00 5.00 1.13 0.75 0.75 7.43 65TD300 230 SWTPA300-6N4-90-AA 3 1 3 4.25 4.00 10.50 6.00 1.13 1.25 0.75 7.93 65TD300 230 SWTPA350-2N-90-AA 3.5 1 1 4.25 3.00 9.50 2.00 0.63 1.00 0.75 6.63 65TD350 345 SWTPA350-4N-90-AA 3.5 2 2 4.25 3.00 9.50 3.00 0.63 0.63 0.75 6.63 65TD350 345 SWTPA350-4N4-90-AA 3.5 1 2 4.25 4.00 10.50 4.00 1.13 1.13 0.75 7.63 65TD350 345 SWTPA350-5N4-90-AA 3.5 1 3 4.25 4.00 10.50 5.00 1.13 0.75 0.75 7.63 65TD350 345 SWTPA350-6N4-90-AA 3.5 1 3 4.25 4.00 10.50 6.00 1.13 1.25 0.75 7.63 65TD350 345 SWTPA400-2N-90-AA 4 1 1 4.25 3.00 10.00 2.00 0.63 1.00 0.75 6.88 65TD400 345 SWTPA400-4N-90-AA 4 2 2 4.25 3.00 10.00 3.00 0.63 0.63 0.75 6.88 65TD400 345 SWTPA400-4N4-90-AA 4 1 2 4.25 4.00 11.00 4.00 1.13 1.13 0.75 7.88 65TD400 345 SWTPA400-5N4-90-AA 4 1 3 4.25 4.00 11.00 5.00 1.13 0.75 0.75 7.88 65TD400 345 SWTPA400-6N4-90-AA 4 1 3 4.25 4.00 11.00 6.00 1.13 1.25 0.75 7.88 65TD400 345 SWTPA500-4N4-90-AA 5 1 2 7.48 4.24 11.24 4.00 1.13 1.13 1.00 8.00 85TD500 345 SWTPA500-5N4-90-AA 5 3 3 7.48 4.24 11.24 5.00 1.13 0.75 1.00 8.00 85TD500 345 SWTPA500-6N4-90-AA 5 3 3 7.48 4.24 11.24 6.00 1.13 1.25 1.00 8.00 85TD500 345 SWTPA600-4N4-90-AA 6 3 2 10.35 4.24 14.49 4.00 1.13 1.13 1.00 10.49 115TD600 345 SWTPA600-5N4-90-AA 6 3 3 10.35 4.24 12.74 5.00 1.13 0.75 1.00 8.74 115TD600 345 SWTPA600-6N4-90-AA 6 3 3 10.35 4.24 14.49 6.00 1.13 1.25 1.00 10.49 115TD600 345 74 Swage Bus Accessories www.AFLglobal.com or 800-890-8878 © 2013, AFL, all rights reserved. PP-3-00660, Revision 1, 3.10.15 Specifications are subject to change without notice. TERMINALS Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. TYPE SWTPA-45R-AA Swage Bus Terminal with 45-degree Pad A Swage type bus terminal with a 45-Degree NEMA pad. C L C L C L C L B A C C 1.75 ∅ 0.56 1.75 0.75 Ordering Information AFL NO. S.P.S. DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A B C SWTPA100-4N-45R-AA 1 6.54 3.00 0.63 65TD100 230 SWTPA100-4N4-45R-AA 1 7.74 4.00 1.13 65TD100 230 SWTPA150-4N-45R-AA 1.5 6.72 3.00 0.63 65TD150 230 SWTPA150-4N4-45R-AA 1.5 7.92 4.00 1.13 65TD150 230 SWTPA200-4N-45R-AA 2 7.72 3.00 0.63 65TD200 230 SWTPA200-4N4-45R-AA 2 8.42 4.00 1.13 65TD200 230 SWTPA250-4N-45R-AA 2.5 8.09 3.00 0.63 65TD250 230 SWTPA250-4N4-45R-AA 2.5 9.29 4.00 1.13 65TD250 230 SWTPA300-4N-45R-AA 3 8.84 3.00 0.63 65TD300 345 SWTPA300-4N4-45R-AA 3 10.04 4.00 1.13 65TD300 345 SWTPA350-4N-45R-AA 3.5 8.97 3.00 0.63 65TD350 500 SWTPA350-4N4-45R-AA 3.5 10.17 4.00 1.13 65TD350 500 SWTPA400-4N-45R-AA 4 9.22 3.00 0.63 65TD400 500 SWTPA400-4N4-45R-AA 4 10.42 4.00 1.13 65TD400 500 —Machine Finish

Features:

Aluminum
Swage compression fitting
Terminal pads conform to NEMA Standards

Applications:

Ratings vary from 230 kV to 500 kV
Substation
Aluminum bus accessories

Swage Aluminum Bus Terminals are designed to connect to a bus pipe and carry the full current of the bus pipe using Swage Technology. Terminal pads conform to NEMA standards. These accessories vary from 230-500kV.
